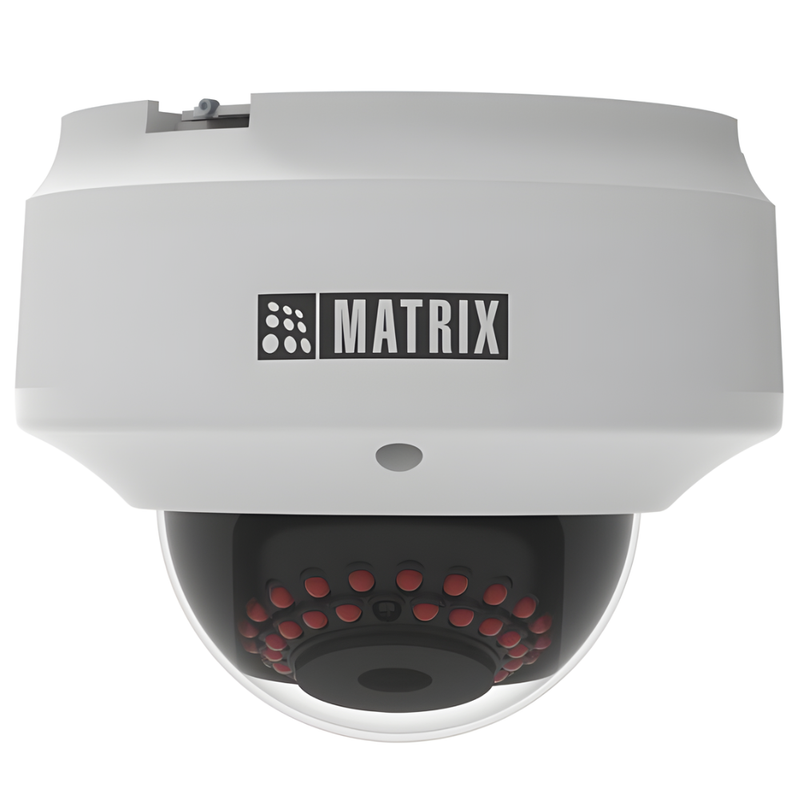

Matrix SATATYA 2MP IR Dome Cameras, Fixed Lens, Audio Support- Project Series

Matrix

Matrix SATATYA 2MP IR Bullet Camera, 2.8mm Fixed Lens, Audio Support- Project Series

SKU: SATATYA CIDR20FL28CWP
Select required product from options below:

Lens: 2.8mm

About Product


The Matrix SATATYA Project Series 2MP IR Dome Cameras deliver reliable indoor surveillance with superior image quality powered by Sony STARVIS CMOS sensors and True WDR 120 dB for balanced lighting. Designed with audio support, IR night vision up to 50m and advanced video analytics like Motion Detection, Intrusion Detection and Trip Wire, these cameras ensure proactive security monitoring. Available in three lens options—SATATYA CIDR20FL28CWP P2 (2.8mm, wide 106° view), SATATYA CIDR20FL36CWP P2 (3.6mm, balanced 87° view), and SATATYA CIDR20FL60CWP P2 (6.0mm, focused 54° view)—these compact dome cameras offer flexibility for offices, retail, and commercial spaces. Built with IK10, IP67 ratings and NDAA compliance, they ensure durability, cybersecurity, and dependable 24/7 performance.

Key Specs


  • Lux: Color - 0.01 Lux @ F1.2 (AGC ON); Monochrome - 0 Lux
  • IR Range: Up to 50m
  • Lens type: 2.8mm Fixed Lens
  • Resolution: 2MP
  • Alarm Trigger: Yes
  • Max Resolution: 1920 x 1080
  • Video Analytics: Motion Detection, Tamper Detection, Trip/No TripDetection (3 Lines), Object Intrusion/Zone Intrusion (3 Zones), Audio Exception
  • Image Enhancement: Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVSForensics/ Smart IR
  • Wide Dynamic Range: True WDR (120dB)

Sign In for Partner Pricing

Not a partner? Register here


Or

Product Specifications

Camera

Resolution
2MP
Image Sensor
1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
Signal System
-
Lux
Color - 0.01 Lux @ F1.2 (AGC ON); Monochrome - 0 Lux
Shutter time
1/15s -1/100000s; Electronic Rolling Shutter
Day & Night
Yes
Wide Dynamic Range
True WDR (120dB)
Angle Adjustment
Pan: 0° to 330°, Tilt:- 0° to 75°, Rotate: 0° to 180°

Lens

Lens type
2.8mm Fixed Lens
Lens Mount
-
Aperture
F 1.6/ F 2.0
FOV
HFOV – 106.9° VFOV – 56.9° DFOV – 127.9°

Illuminator

IR LED
-
IR Range
Up to 50m
Wavelength
850nm

Compresssion Standard

Video compression
H.265, H.264, MJPEG
Video Bit Rate
128 kbps-8Mbps
Audio compression
G.726 ,G.711 a-law and u-law
Audio Bit Rate
-


Max Resolution
1920 x 1080
Main Stream
1920 x 1080p @30fps (H.265/H.264)
Sub Stream
D1 @30fps (H.265/H.264)
Image Setting
-
Image Enhancement
Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVSForensics/ Smart IR
OSD
-
Privacy Mask
3
Smart Defog
-

Feature

Alarm Trigger
Yes
Video Analytics
Motion Detection, Tamper Detection, Trip/No TripDetection (3 Lines), Object Intrusion/Zone Intrusion (3 Zones), Audio Exception

Network

Protocol
TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, DynDNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, SNMP, FTP, TLS/SSL, SFTP, ICMP, IGMPv2 & v3, ARP, 802.1x, IPv4, IPv6, QoS Layer 3, DSCP, CIFS, SSH, UPnP, Bonjourss
System Compatibility
ONVIF (S, G, and T)
Remote Connection
-
Client
-
Web Version
Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0

Interface

Communication Interface
10Base-T/100BaseTX Ethernet (RJ-45)
Audio I/O
1x(3.5mm stereo female audio jack) and In-built Microphone/ 1x(3.5mm stereo female audio jack)

General

Web Client Language
English
Operating Conditions
-30°C to 60°C
Power Supply
12V (DC); 802.3af (PoE)
Power Consumption
Approximately 7W
Protection
Web login Password protection, Unused debug interface protection
Dimensions
158mm x 134mm
Weight
1.41kg
